FIND THE
LENS.
Professional optical lens detection for locating concealed camera lenses by their reflected optical signature — without relying on the camera being powered or transmitting.
OL-50

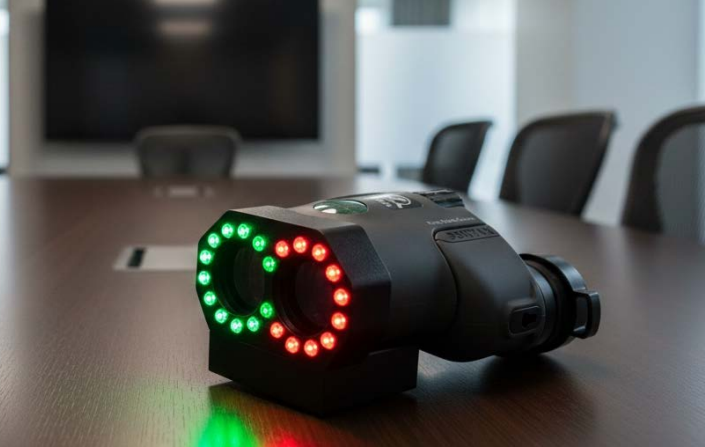

A professional optical camera detector designed to reveal concealed camera lenses, including pinhole devices, using the cat's-eye principle and reflected illumination.
DETECT THE
REFLECTION.
The OL-50 is presented as an optical lens finder rather than an RF scanner. Its detection concept uses illumination and the characteristic reflected response of a camera lens to help the operator visually locate concealed optics.
Illuminate
The integrated LED array illuminates the inspection area.
Reflect
A concealed lens can return a distinctive optical reflection toward the detector.
Magnify
The optical system provides 8× magnification for visual confirmation.
Locate
The operator sweeps the environment and investigates visible lens reflections.
FIELD RANGE
AT A GLANCE.
Charts below are visual presentations of the catalogue specifications, not independent performance scores.
Detection distance
Specified detection range: 0.5–50 m.Operating time
Battery runtime varies by operating mode.Optical field
These bars are visual indicators and should not be interpreted as common-unit performance scores.Illumination system
Catalogue describes green/red continuous and pulse operating modes, including combined pulse operation.OL-50
SPECIFICATIONS.
Dedicated specification table for the optical lens detection product.
| Specification | OL-50 catalogue value |
|---|---|
| Product type | Hidden camera detector / optical lens detector |
| Detection principle | Cat's-eye principle / optical reflection |
| Detection range | 0.5–50 m |
| Focus range | 0.5 m to infinity |
| Magnification | 8× |
| Viewing angle | 7.5° |
| Illumination | 22 LEDs |
| Operating modes | Continuous and pulse modes; green/red indications; combined pulse mode |
| Battery life | 4 h pulse / 6 h continuous |
| Power supply | 3.7 V lithium-ion rechargeable battery |
| Weight | 450 g (1 lb) |
Catalogue values are presented as supplied for the OL-50. No additional numerical performance claims have been added to this page.
OPTICAL SWEEPS
FOR SENSITIVE SPACES.
Executive Offices
Inspect meeting rooms, executive offices and other controlled spaces for concealed optical devices.
Hotels & Rooms
Perform visual lens sweeps of rooms and fixtures where privacy is important.
Vehicle Inspection
Use the optical detector to inspect vehicle interiors and difficult-to-view areas.
VIP Protection
Support pre-event and pre-visit visual inspection of sensitive environments.
Counter-Surveillance
Use optical lens detection as part of a broader technical surveillance counter-measures workflow.
Protected Areas
Help locate concealed camera optics in offices, rooms, facilities and other sensitive locations.
LOCATE CONCEALED OPTICS.
OL-50 combines optical illumination, magnification and a dedicated lens-detection workflow in a compact field instrument.
